Alpha 2-4 LSCbasic
Universal benchtop unit in compact design for efficient lyophilization of samples
Ice condenser capacity
: 4 kg
Ice condenser temperature : -85 °C
Ice condenser temperature : -85 °C
Laboratory freeze-dryer
Efficient lyophilization of samples with the innovative Wireless Shelf Technology.
Alpha 2-4 LSCplus
Freezing and drying inside the ice condenser (single-chamber method) on a heated shelf, optionally with a fan
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Single-chamber |
| Max. number of shelves | 1 |
| Shelf diameter | 200 mm |
| Total shelf area | 0,031 m² |
| Max. container height | 60 mm |
| Shelf temperature | –35 °C to +60 °C |
Alpha 2-4 LSCplus
Freezing and drying inside the ice condenser (single-chamber method) on a heated shelf with stoppering device for vials, optionally with a fan
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Single-chamber |
| Max. number of shelves | 1 |
| Shelf diameter | 200 mm |
| Max. capacity for 2R Vials | 110 |
| Stoppering device | Yes |
| Shelf temperature | –35 °C to +60 °C |
Alpha 2-4 LSCplus
Two drying chambers with a total of 24 connections for round-bottom flasks, wide-neck bottles or ampoule distributors
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Acrylic chamber | 2 x Ø 300 mm |
| Max. connections | 24 |
Alpha 2-4 LSCplus
Drying manifold for eight round-bottom flasks, wide-neck bottles or ampoule distributors; specifically suitable for solvent drying
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Max.connections | 8 |
Alpha 2-4 LSCplus
Five heatable shelves, additional connections for up to twelve round-bottom flasks, wide-neck bottles or ampoule distributors
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Max. number of shelves | 5 |
| Shelf diameter | 200 mm |
| Total shelf area | 0,155 m² |
| Distance between shelves | 25 mm |
| Max. connections | 12 |
Alpha 2-4 LSCplus
Ten heatable shelves
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Max. number of shelves | 10 |
| Shelf diameter | 200 mm |
| Total shelf area | 0,31 m² |
| Distance between shelves | 25 mm |
Alpha 2-4 LSCplus
Five heatable shelves, additional connections for twelve round-bottom flasks, wide-neck bottles or ampoule distributors
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Max. number of shelves | 5 |
| Shelf diameter | 200 mm |
| Total shelf area | 0,155 m² |
| Distance between shelves | 66 mm |
| Max. connections | 12 |
Alpha 2-4 LSCplus
Two heatable shelves with stoppering device, additional connections for twelve round-bottom flasks, wide-neck bottles or ampoule distributors
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Max. number of shelves | 2 |
| Shelf diameter | 250 mm |
| Total shelf area | 0,09 m² |
| Distance between shelves | 45 mm to 110 mm |
| Max. capacity for 2R Vials | 300 |
| Stoppering device | Yes |
| Max. connections | 12 |
Alpha 2-4 LSCplus
Four heatable shelves with stoppering device
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Max. number of shelves | 4 |
| Shelf diameter | 250 mm |
| Total shelf area | 0,18 m² |
| Distance between shelves | 45 mm to 110 mm |
| Max. capacity for 2R Vials | 600 |
| Stoppering device | Yes |
Alpha 2-4 LSCplus
LyoCube with five heatable shelves 256 x 300 mm
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Number of shelves | 5 |
| Dimensions | 256 x 300 mm |
| Total shelf area | 0,38 m² |
| Distance between shelves | 55 mm |
Alpha 2-4 LSCplus
Drying manifold for up to twenty round-bottom flasks, wide-neck bottles or ampoule distributors
Condenser capacity: 4 kg
Condenser temperature: –85 °C
| Controller | LSCplus |
| Method | Double-chamber |
| Max. conncetions | 20 |
Basic device

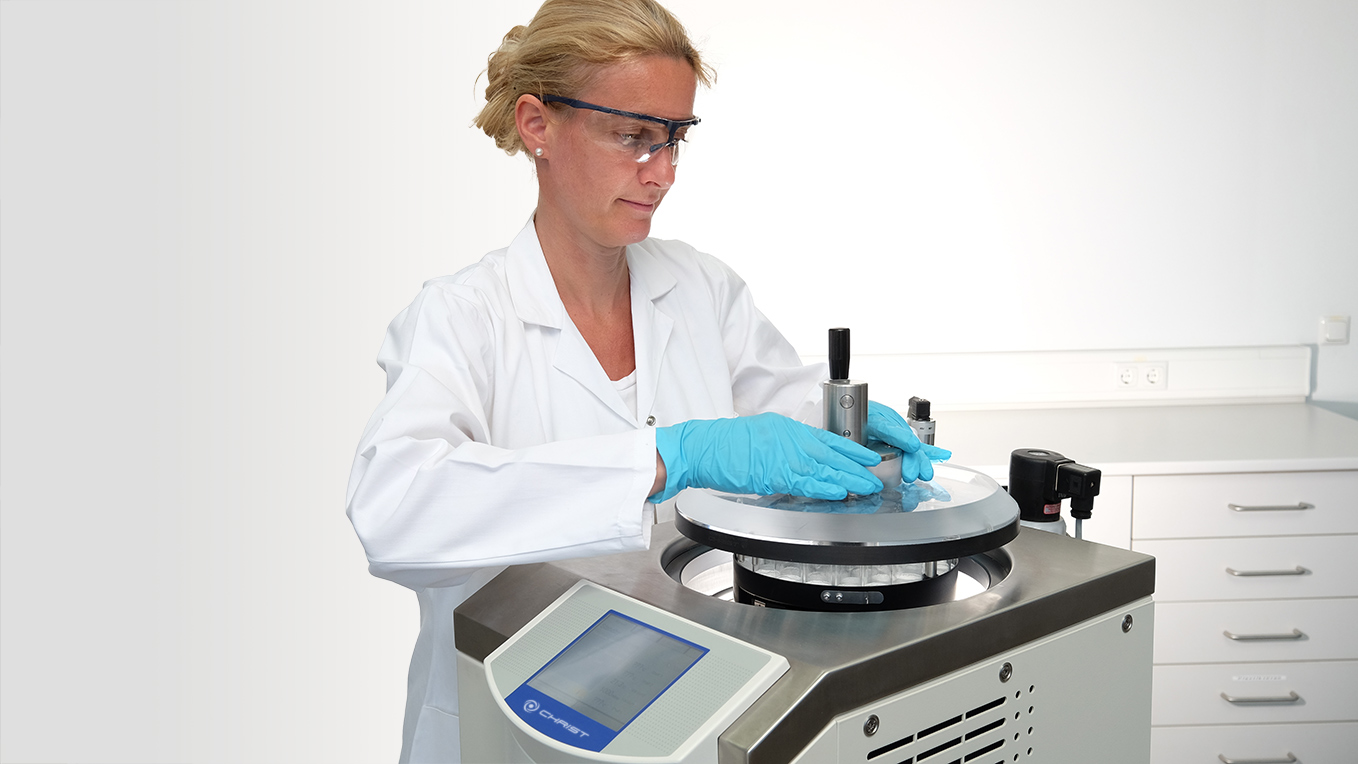

Compact tabletop unit for effective lyophilisation of specimens with innovative Wireless Shelf Technology. The freeze dryer can be configured with tried and tested accessories to meet your specific needs. The simple and intuitive LSCplus controller supports manual and automatic process control for reproducible results.
Two different drying methods are available to handle virtually every task. –85° C condenser temperature for specimens with low eutectic points.
Ice condenser capacity
4 kg
4 kg
Ice condenser temperature
-85 °C
-85 °C
Footprint
390 x 415 x 555 mm
390 x 415 x 555 mm
Product Specifications
| Ice condenser capacity | 4 kg |
|---|---|
| Ice condenser temperature | -85 °C |
| Dimensions of base model (W x H x D) | 390 x 415 x 555 mm |
| Weight | 60 kg |
| Communication port | Ethernet |
| GWP Index | ≤ 6 |
Special Features
- Vacuum control
- Pressure rise test
- Defrost function
- Product temperature
- Program selector
Equipped with natural refrigerants*
As a leading manufacturer of freeze drying systems, we use natural refrigerants to provide sustainable and environmentally friendly freeze drying solutions. Our innovations help reduce environmental impact and build a greener future.
In 2009, we became one of the first manufacturers to convert our laboratory and pilot freeze dryers to nonflammable refrigerants. As a result, our freeze dryers have a particularly low Global Warming Potential (GWP) index.
* 50 Hz version, technichal changes reserved
